RAG Architecture Explained: Complete Guide

Retrieval-Augmented Generation (RAG) architecture is transforming how modern AI applications deliver accurate and context-aware responses. Instead of relying solely on pre-trained knowledge, RAG combines semantic search with Large Language Models (LLMs) to retrieve relevant information from external data sources before generating answers. This approach significantly improves accuracy, reduces hallucinations, and enables AI systems to work effectively with real-time and private data.

This is where Retrieval-Augmented Generation (RAG) comes into play.

RAG combines information retrieval with language generation, enabling AI systems to deliver more reliable and context-aware responses.

What is RAG?

Retrieval-Augmented Generation (RAG) is an architecture that enhances LLM responses by:

• Retrieving relevant information from external data sources
• Feeding that information into the model
• Generating responses based on both retrieved data and model knowledge

Instead of relying only on pre-trained knowledge, RAG allows AI to “look things up before answering.”

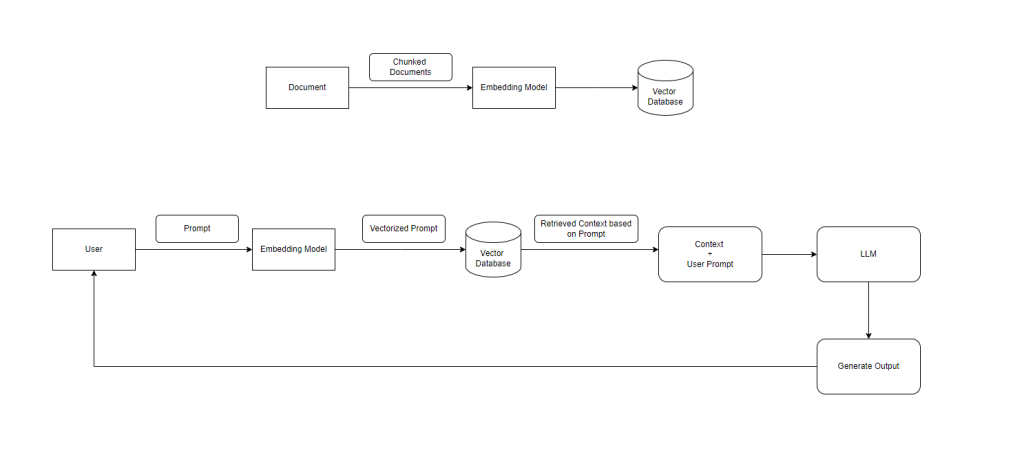

RAG Architecture Overview

The architecture consists of two major pipelines:

1. Data Ingestion Pipeline (Indexing)
2. Query Processing Pipeline (Retrieval + Generation)

Data Ingestion Pipeline

This phase prepares your data so it can be efficiently searched later.

Step 1: Document Collection

Raw data is gathered from multiple sources:

• PDFs
• Databases
• APIs
• Knowledge bases

Step 2: Document Chunking

Large documents are broken into smaller chunks.

Why?

• Improves search precision
• Ensures relevant context is retrieved

Step 3: Embedding Generation

Each chunk is converted into a vector using an embedding model.

• Text → Numerical representation
• Captures semantic meaning

Step 4: Vector Storage

Embeddings are stored in a vector database such as:

• Pinecone
• Weaviate
• FAISS

This enables fast similarity-based search.

Query Processing Pipeline

This phase handles user queries in real time.

Step 1: User Query

The user submits a prompt or question.

Step 2: Query Embedding

The query is converted into a vector using the same embedding model.

Step 3: Semantic Search

The vector database is queried to find:

• Most relevant document chunks
• Based on similarity

Step 4: Context Retrieval

Top matching results are retrieved as context.

Step 5: Context + Prompt Combination

The system combines:

• User query
• Retrieved context

Step 6: LLM Response Generation

The combined input is sent to the LLM.

The model generates a response that is:

• Context-aware
• Accurate
• Grounded in real data

Step 7: Output to User

The final answer is returned to the user.

End-to-End Flow Summary

1. Documents are processed and stored as vectors
2. User query is converted into a vector
3. Relevant data is retrieved from the vector database
4. Retrieved data is sent to the LLM
5. LLM generates a response using both context and knowledge
